> | with(plottools): # if you type : in the end
# then there will be no/less text output |
> | with(plots): |
Warning, the name changecoords has been redefined
Warning, the previous binding of the name arrow has been removed and it now has an assigned value

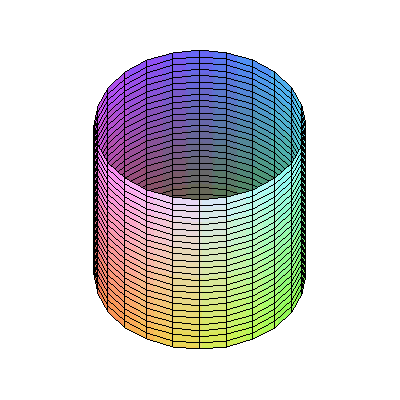

> | cylinderplot(1,theta=0..2*Pi,z=-1..1); |
> | # OK, let's do the math first,

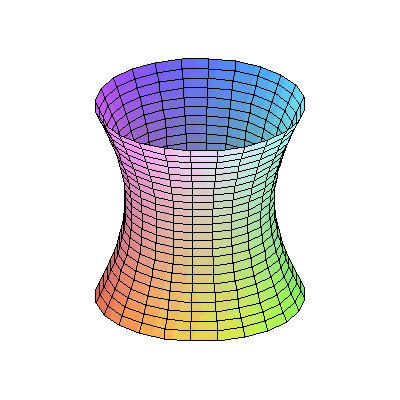

# if x^2 + y^2 = 1+z^2 # and for a given z we have an x/y plane # where the ray with angle theta and length r # projects onto the x and y axis with x and y, respectively, # by Pythagoras, we have x^2 + y^2 = r^2, i.e. # r = sqrt(x^2+y^2) = sqrt(1 + z^2) by the above. # hence cylinderplot(sqrt(1+z^2),theta=0..2*Pi,z=-1..1); |
> | # we can give the plot a name, i.e. assign it to
# a variable: |

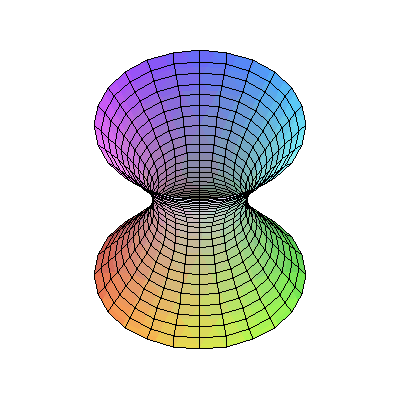

> | H := cylinderplot(sqrt(1+z^2),theta=0..2*Pi,z=-2..2); |
> | display(H); # here it is: |
> | # let's intersect the Hyperboloid with a plane
# at first, a plane: |

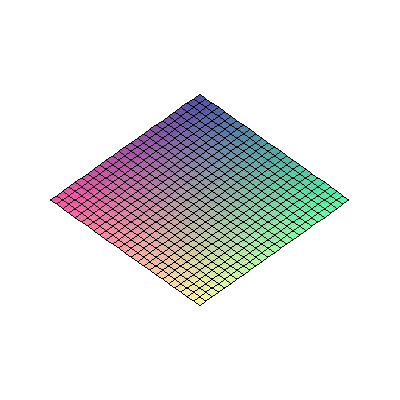

> | plot3d(1,x=-2..2,y=-2..2); |
> | P := plot3d(1,x=-2..2,y=-2..2); |

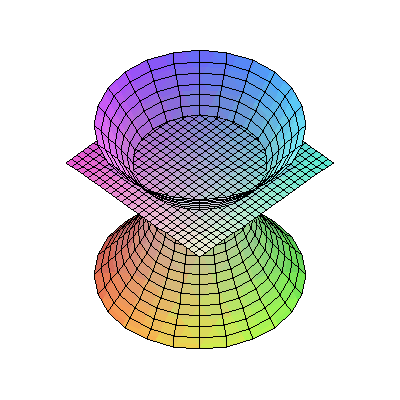

> | display(H,P); |
> | # we need labels for the corrdinate axes,
# let's replot with labels: |

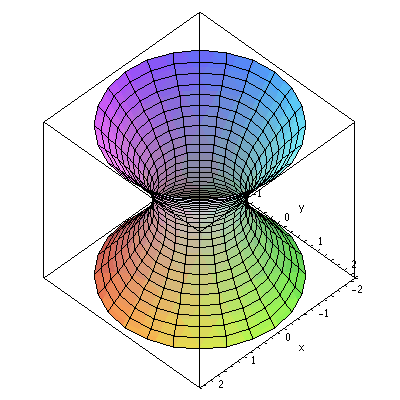

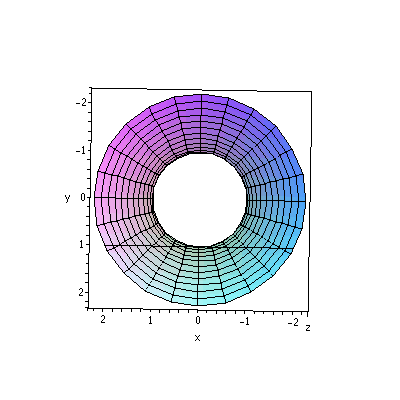

> | H := cylinderplot(sqrt(1+z^2),theta=0..2*Pi,z=-2..2,axes=BOXED,labels=[x,y,z]); |
> | display(H); |
> | display(H,P); |
> | # we need to rotate the plane around the y axis |
> | # by 90 degrees = 9*Pi/18 (or x-axis)
# the rotate command can do that # it is called # rotate(object to rotate, alpha, beta, gamma) # where alpha, beta, gamma are the angles # of rotation around the x, y, z axes, resp. |
> | R := rotate(P,0,9*Pi/18,9*Pi/18): # beware of the output ! |

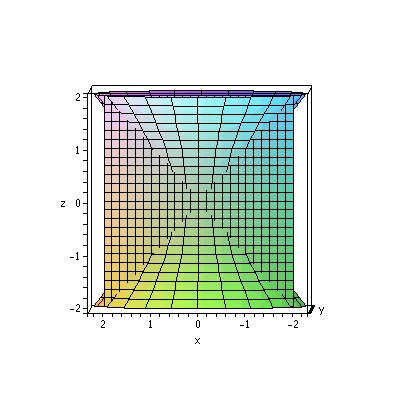

> | display(H,R); |
> | display(H,R); |

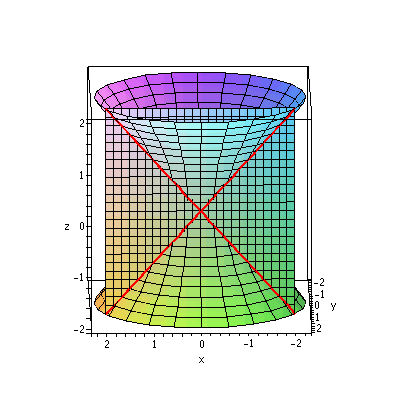

> | # we can see the plane at distance 1
# from the z-axis. It intersects the Hyperboloid # in two lines. # Let's see if we can get hold of those two lines: # the right thing to do is to define a spacecurve, # which is just a parametrized curve in 3 space. # The function is # spacecurve([x(t),y(t),z(t)],t=-...); |
> | # lets do the math first.
# the curve is in the plane y=1, i.e. # we substitute y=1 into the equation x^2+y^2-z^2=1 # an get # x^2=z^2 # i.e. # x=+z and x=-z # so, we may parametrize x(t)=t,y(t)=1,z(t)=+-t |
> | C1 := spacecurve([t,1,t],t=-2..2,color=red,thickness=3): # beware of too much output! |
> | C2 := spacecurve([t,1,-t],t=-2..2,color=red,thickness=3): |
> | display(H,R,C1,C2); |
> | # let's see the hyperbolas.
# no we cut with a plane x=0 to get from # the equation x^2+y^2-z^2=1 # y^2=z^2+1 # i.e. y = +- sqrt(1+z^2) # i.e. x(t)=0,y(t) =sqrt(1+z^2),z(t) = t |

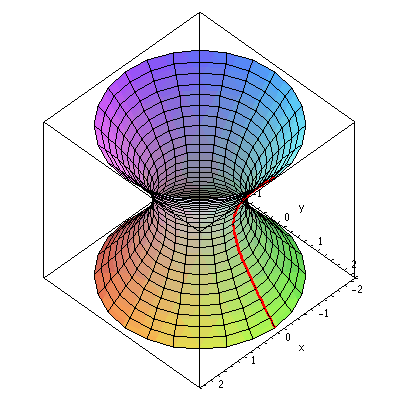

> | C3 := spacecurve([0,sqrt(1+t^2),t],t=-2..2,color=red,thickness=3): |
> | display(H,C3); |

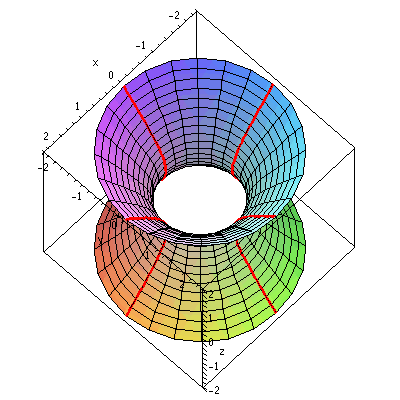

> | # let's draw 4 hyperbolas, one in each direction.
# we do that using a list (recall how we # handled lists in the first lecture?) |
> | L := []: for i from 0 to 4 do
L := [ op(L), rotate(C3,0,0,i*9*Pi/18)]: end: |
> | display(H,L); |
> |
> | # irem(a, b) gives the remainder r of a upon division by b,
# i.e. the r in a = q * b + r with 0 <= r < b. # For example, |
> | irem(17,5);
|
> | irem(18,5);
|
> | irem(19,5);
|
> | irem(20,5);
|
> | #however: |
> | irem(-1,5);
|
> | # so for negative inputs we get a negative remainder
# we need to be aware of that fact. |
> |
> | # this is how we make an if construct: |
> | if 3 > 2 then print("hello"); end;
|
> | if 2 > 3 then print("hello"); end;
|
> | if 2 > 3 then print("hello"); else print("good-bye"); end; |
> | # the igcd function computes the greates common divisor (gcd) for integers |
> | igcd(6,30);
|
> | igcd(176654,675364);
|
> | igcd(8!,9!+7!);
|
> | # is that correct?
# let us check it: # 9! + 7! = 7! * (1 + 9 * 8) # 8! = 8 * 7! |
> | 1 + 9 * 8;
|
> | 7!;
|
> | # since 8 and 73 are relatively prime we have that the gcd is 7!= 5040
|
> |
> |
> |
> |
> | HOMEWORK PROBLEMS: |
> | # hw 1
# the hyperboloid of one sheet admits two sets of # disjoint lines on it (called rulings). # They can be obtained from the two lines we # have drawn above by rotation. # Plot these lines, but don't plot the # hyperboloid any more. # use a list of objects to draw # as in the last example. |
> |
> | # hw 2
# Plot the Hyperbolic paraboloid x^2-y^2+z = 0 # Using the command spacecurve, # show that one parabola and one hyperbola # on the surface. # |
> |
> | # hw 3
# a) Make a 10 by 10 matrix and fill the entry in row i column j # with the gcd of i and j. # b) Do the same, but this time let the entry (i,j) be the gcd of # i! and j! |
> |
> |
> |
> |
> |
