> | # let's talk about for loops again:
# it is possible to go down in the loop variable # ie to decrement it. |
> | for i from 10 by -1 to 1 do
2^i; end; |
> | # or you may jump up in steps of 2: |
> | for i from 0 by 2 to 10 do
2^i; end; |
> |
> | # what if the bounds don't fit exactly? |
> | for i from 1 by 2 to 10 do
2^i; end; |
> | # OK, we stop once we leave the range. |
> | A := Matrix(7,7); |
> | for i to 7 do
for j to 7 do A[i,j] := i + j; end; end; |
> | A; |
> | # let's compute the sum of all matrix entries: |
> | s := 0; |
> | for i to 7 do for j to 7 do s := s + A[i,j]; end; end; |
> | s; |
> | # scalar multiply the matrix, i.e.
# multiply each entry of the matrix by the same value: |
> | 2*A; |
> | # guess what is the sum of entries of this matrix?
# yes, it is twice of what it was before: |
> | B := %: |
> | t := 0; |
> | for i to 7 do for j to 7 do t := t + B[i,j]; end; end; |
> | t; |
> | 2*s; |
> | # so, can you compute the factorial without using Maple's ! function? |
> | # here we go: |
> | s := 1; |
> | for i from 1 to 6 do s := s * i; end; |
> | s; |
> | # or downward: |
> | s := 1; |
> | for i from 6 by -1 to 1 do s := s * i; end; |
> | s; |
> | # new topic: graphics
# let's clear the memory first: |
> | restart; |
> | plot(sin(t),t); |

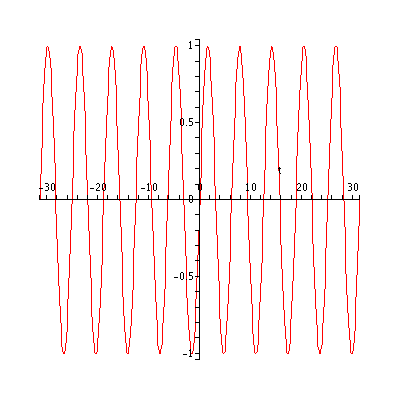

> | plot(sin(t),t=-10*Pi..10*Pi); |
> | # you can click on the plot and resize the window, for example.
|
> | # two plots in one: |
> | plot([sin(t), cos(t)], t=-Pi..Pi);
|
> | #another way to define a function |
> | f := x -> exp(-x^2)*sin(Pi*x^3); |
> | plot(f,-2..2); |
> | # you can draw the plot over the full x-axis to infinity: |
> | plot(f, 0..infinity); |

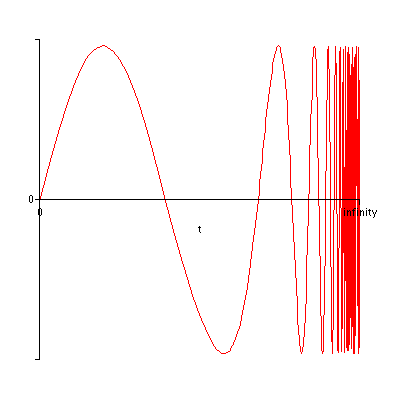

> | # OK, let's plot the sin up to infinity: |
> | plot(sin(t),t=0..infinity); |
> | # multiple plots in one: |
> | plot([f(x), exp(-x^2),-exp(-x^2)],x=-2..2);
|
> | # for folks who use unix/linux etc.
# you can export Maple plots in PostScript files |
> | plotsetup(PostScript, plotoutput="test.eps", |
> | plotoptions="portrait,noborder,height=3in,width=4.5in"): |
> | plot([f(x), exp(-x^2),-exp(-x^2)],x=-2..2); |
> | # now a file "test.eps" has been created.
# to get back to normal mode use |
> | plotsetup(default);
|
> | # a parametric x/y - plot:
# notice: the only difference from # the previous "two plots in one" # is the position of the # closing square bracket: |
> | plot([sin(t), cos(t), t=-Pi..Pi]);
|

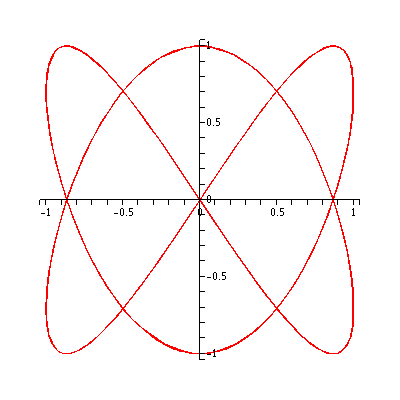

> | plot([sin(2*t),cos(3*t+Pi/2),t=0..10*Pi]); |
> | # you may play around with the constants !
# next, a polar coordinate plot: |

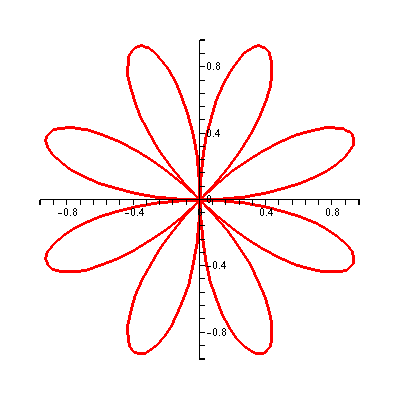

> | plot([sin(4*x),x,x=0..2*Pi],coords=polar,thickness=3); |

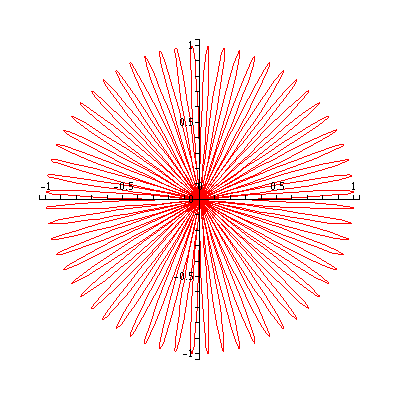

> | plot([sin(30*x),x,x=0..2*Pi],coords=polar); |
> | # point plot: |
> | plot(sin,0..Pi, scaling=constrained, style=point,symbol=circle,symbolsize=20); |
> | # another way is creating the list first |
> | l := [[ n, sin(n*Pi/20)] $n=0..20]: |
> | plot(l, x=0..21, style=point,symbol=circle);
|
> | # we need to load a "package" |
> | with(plots):
Warning, the previous binding of the name arrow has been removed and it now has an assigned value |
Error, missing operator or `;`
> | # implicit plots of algebraic curves |
> | implicitplot(y^2=x*(x+1)*(2*x+1)/6,x=-3..3,y=-4..4);
|
> | # it does not look nice.

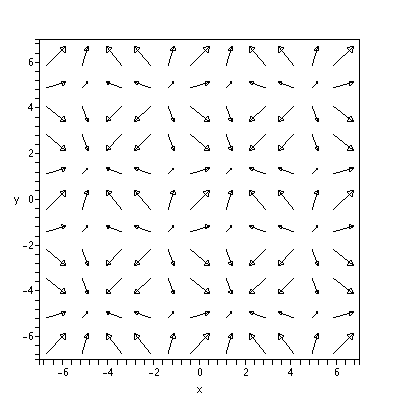

# field plots |
> | fieldplot([cos(x),cos(y)],x=-2*Pi..2*Pi,y=-2*Pi..2*Pi, arrows=SLIM, grid=[11,11], axes=boxed); |
> |
> | # 3D plots:
|

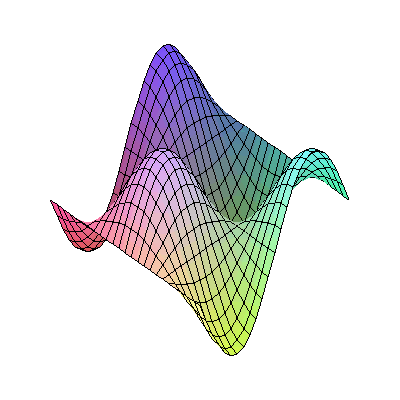

> | plot3d(sin(x)*cos(y),x=-Pi..Pi,y=-Pi..Pi); |
> | # you can click on the plot and strech it around to make it look nice

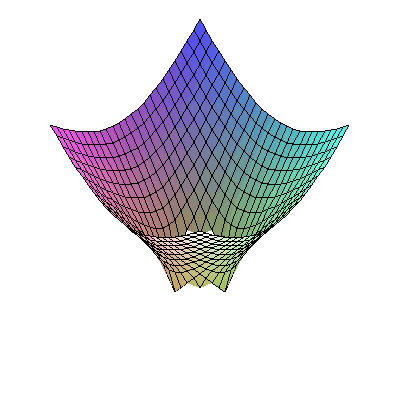

# we want to plot the quadratic surface x^2+y^2-z^2=1 # this is a "hyperboloid of one sheet" # also known from atomic power plants. # we first try to solve it for z, i.e. # z = sqrt(x^2+y^2-1) |
> | plot3d(sqrt(x^2+y^2-1),x=-3..3,y=-3..3);
|
> | # it does not look good.
# to improve, we need to choose better coordinates # we need to load another packages, however: |
> | with(plottools);
|
Warning, the assigned name arrow now has a global binding

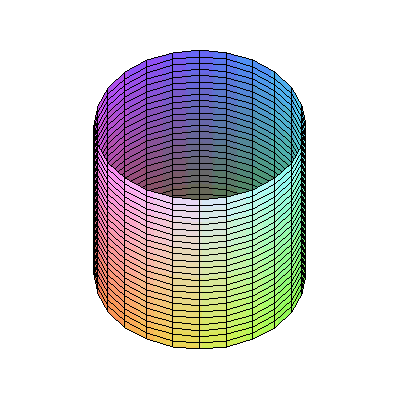

> | cylinderplot(1,theta=0..2*Pi,z=-1..1);
|

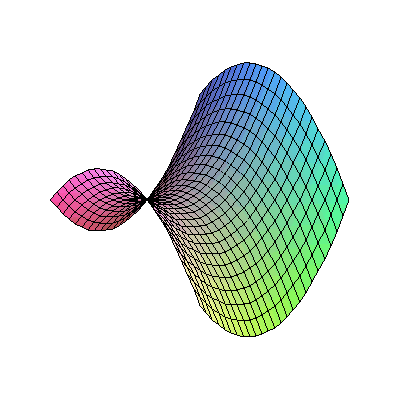

> | # OK, let's do the math first,
# if x^2 + y^2 = 1+z^2 # and for a given z we have an x/y plane # where the ray with angle theta and length r # projects onto the x and y axis with x and y, respectively, # by Pythagoras, we have x^2 + y^2 = r^2, i.e. # r = sqrt(x^2+y^2) = sqrt(1 + z^2) by the above. # hence |

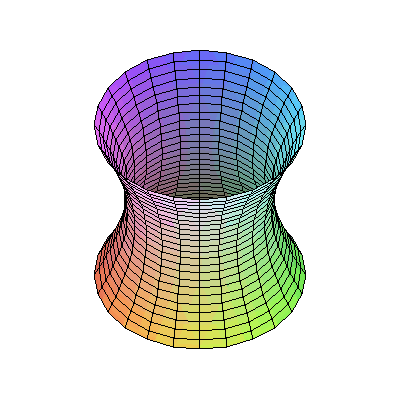

> | cylinderplot(sqrt(1+z^2),theta=0..2*Pi,z=-1..1);
|
> | # aahh, this looks much better!
# what else is there? try sphereplot, for example: |

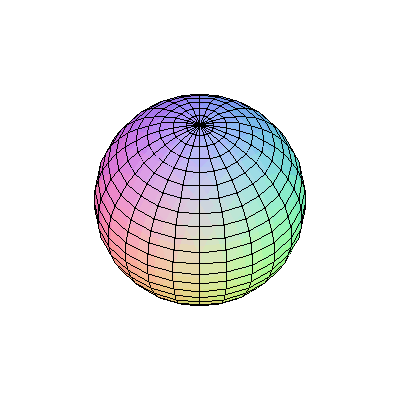

> | sphereplot(1,theta=0..2*Pi,phi=0..Pi);
|
> | # lets make the sphere wobbly: |

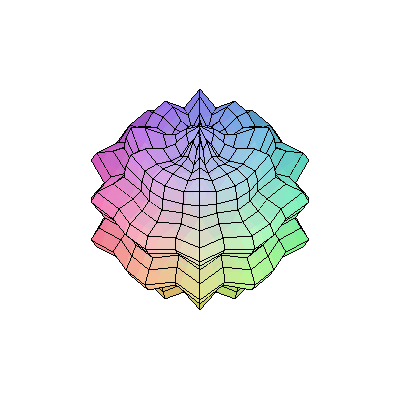

> | sphereplot(10+sin(10*theta)+cos(10*phi),theta=0..2*Pi,phi=0..Pi);
|

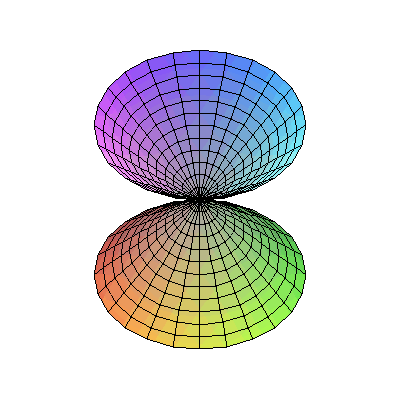

> | # OK, now for another cylinderplot
# this time we plot the real quadric cone # with equation x^2+y^2=z^2 or x^2+y^2-z^2 = 0 |
> | cylinderplot(z,theta=0..2*Pi,z=-1..1);
|
> | # elliptic paraboloid: x^2+y^2+z = 0
# r = (x^2+y^2), so r = sqrt(-z) |
> | cylinderplot(sqrt(-z),theta=0..2*Pi,z=-1..1);
|
> | # Hyperbolic paraboloid x^2-y^2+z = 0
# back to ordinary plots z in terms of x and y: |
> | plot3d(x^2-y^2,x=-1..1,y=-1..1);
|
> | # for more info on quadric surfaces, see
# http://www.math.umn.edu/~rogness/quadrics/index.shtml |
> | HOMEWORK PROBLEMS: |
> | # hw 1 a) plot the Hyperboloid of one sheet x^2+y^2-z^2=1
# b) plot the Hyperboloid of two sheets x^2+y^2-z^2=-1 |
> |
> | # hw 2 here is a plot. Find the command to recreate it:
|
> |
> | # hw 3
# Plot the first 5 Chebyshev polynomials in one plot. # (you may want to create a list # of the polynomials first) |
> | # hw 4
# The "tribonacci" numbers are defined as # f(1) = 1, f(2) = 1, f(3) = 1, # f(n) = f(n-1) + f(n-2) + f(n-3) for n >= 4. # Compute the first 20 tribonacci numbers. # compute the ratio f(i)/f(i-1) for i <= 20. # Does it converge? |
